Wall saws

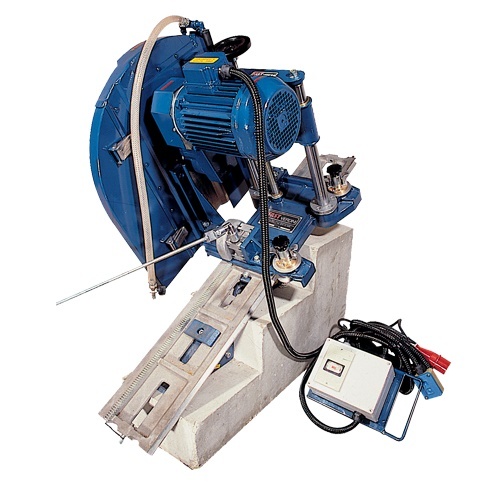

Electric wall saws
Aluminum wall saw, which can be divided into two parts: the first part weighing 28 kg, the second 36 kg, for easy installation. Transmission of the engine - a disk with a double chain gear, an electric panel in a separate metal box, a motor protection switch. It is possible to use equipment for cutting diamond wire.
Electric wall saws
| Model | MPF320 - Electric |
Model code | PTEMPF320 |
Diamond blades (mm) | 800-900 |
Cutting depth (mm) | 330-380 |
Cutting advancement management | Manual |
Depth Control | Manual |
Engine power (kV (hp)) | 5.9 (8.0) |
Voltage (V) | 400 |
Track Length (mm) | 600 |

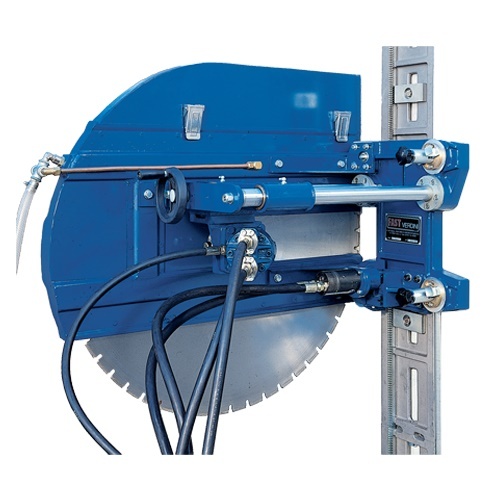

Hydraulic wall saws
Aluminum wall saw, which can be divided into two parts: the first part weighing 30 kg, the second 10 kg, for easy installation. Engine transmission - a disk with a reducer, a fully automated machine, with remote control from a hydraulic control unit. It is possible to use equipment for cutting diamond wire.
Hydraulic wall saw
Model | TG1200S - Hydraulic |
Model code | PITG120A |
Diamond blades (mm) | 1000-1200 |
Cutting depth (mm) | 425-530 |
Cutting advancement management | Automatic |
Depth Control | Automatic |
Max. input flow of the disk engine (l / min) | 42 |
Max. disk inlet pressure (Bar) | 200 |
Max. engine throughput in depth (l / min) | 4+4 |
Max. engine inlet pressure depth (Bar) | 100 |
Track Length (mm) | 600 |

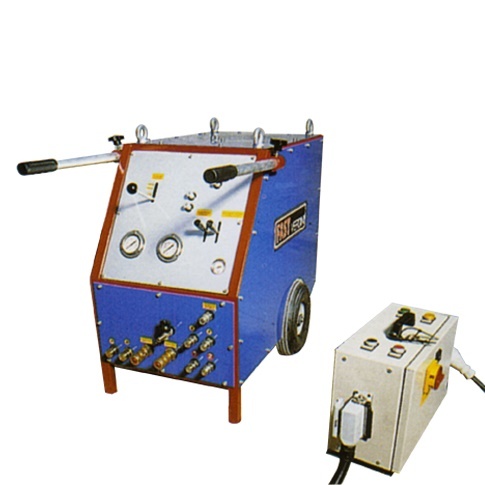

Hydraulic control unit
Hydraulic control unit with electric start, suitable for powering the TG1200S wall saws, complete with control devices, barometers and an oil filter clogging indicator, proportional adjustment of engine speed, depth and extension drives, a separate electric command control unit in a metal box. The control unit can also work with the use of diamond wire.
Hydraulic control unit
Model | GL22 - Hydraulic |
Model code | PICNID20 |
Engine | ELECTRIC |
Engine power (kV (hp)) | 14.70 (20) |
Voltage (V) | 400 |
Main pump flow rate (l / min) | 42 |
Max. main pump pressure (bar) | 200 |
Secondary pump flow rate (l / min) | 8 |
Max. secondary pump pressure (bar) | 100 |
Oil tank capacity (L) | 19 |
Length of hydraulic pipe (m) | 10 |
Weight without liquids (kg) | 157 |
Size (cm) | 51 x 92 H=83 |
