Top hammer drill rigs BBurg

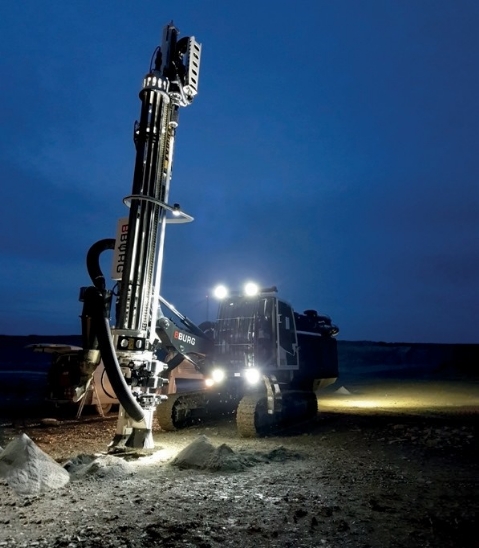

Top hammer drill rig HD 1400 D | |
Application area | career |
Recommended well diameter | 89-110 mm |
Drill pipe diameter | 76-89 mm |
Compressor performance | 18 m³/min |
Maximum compressor operating pressure | 16 bar |
Boom type | single-part |

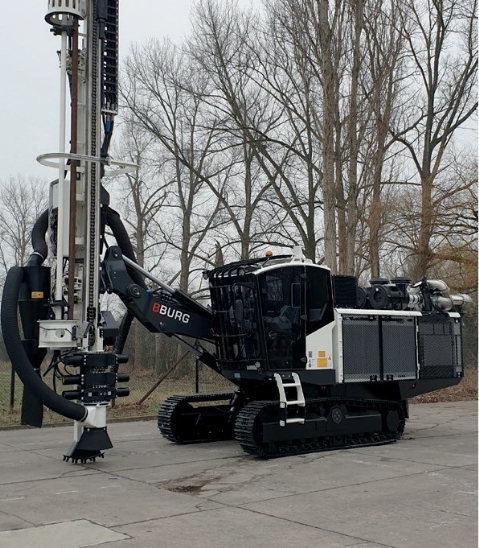

Top hammer drill rig HD 1500 D / HD 1580 D | |
Application area | major careers and mines |
Recommended well diameter | 89-172 mm |
Drill pipe diameter | 76-127 mm |
Compressor performance | 26 m³/min (HD 1580 D: 27 m³/min) |
Maximum compressor operating pressure | 25 bar / 30 bar (HD 1580 D: 35 bar) |
Boom type | single-part |
Top hammer drill rig HD 1600 D | |
Application area | major careers and mines |
Recommended well diameter | 89-219 mm |
Drill pipe diameter | 89-140 mm |
Compressor performance cbm | 30 m³/min |
Maximum compressor operating pressure | 30 bar / 35 bar |
Boom type | single-part |
