Vibrators with integrated transducer
The LVT and SVT series represent high-frequency submersible vibrators for concrete with a replaceable electric motor.

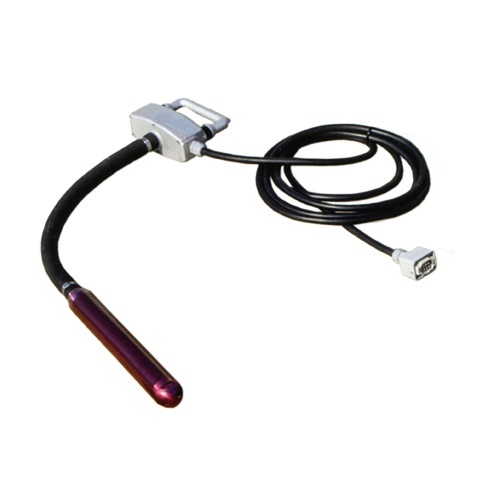

SVT Series
SVT Series
Model | SVT27 | SVT40 |
Model code | PFVSVT27 | PFVSVT40 |
Diameter of vibro-tip (mm) | 38 | 52 |
Vibro-tip length (mm) | 315 | 395 |
Input voltage (V) | 230 | |
Input Frequency (Hz) | 50 | |
Output voltage (V) | 216 | |
Output frequency (Hz) | 200 | |
Flexible shaft length (m) | 0.6 | |
Electric cable (m) | 0.6+5 | |
Vibration (rpm) | 12000 | |
Working weight (kg) | 5 | 7.5 |

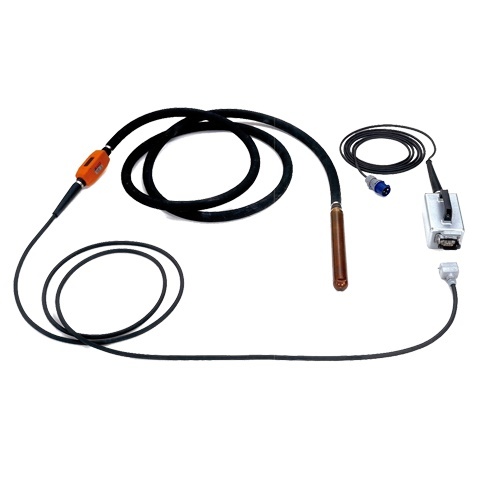

LVT Series
LVT Series
Model | LVT27 | LVT40 | LVT55 |
Model code | PFVLVT27 | PFVLVT40 | PFVLVT55 |
Diameter of vibro-tip (mm) | 38 | 52 | 65 |
Vibro-tip length (mm) | 315 | 395 | 420 |
Input voltage (V) | 230 | ||
Input Frequency (Hz) | 50 | ||
Output voltage (V) | 216 | ||
Output frequency (Hz) | 200 | ||
Flexible shaft length (m) | 5 | ||
Electric cable (m) | 5+10 | ||
Vibration (rpm) | 12000 | ||
Working weight (kg) | 9.5 | 15 | 19 |
