Small-scale mechanization and storage equipment
Vibrating plates reversible
AR Series
Double bottom sheet steel with the option of attaching extension plates.
ACCESSORIES: water system for working on asphalt; rubber mat for self-locking.

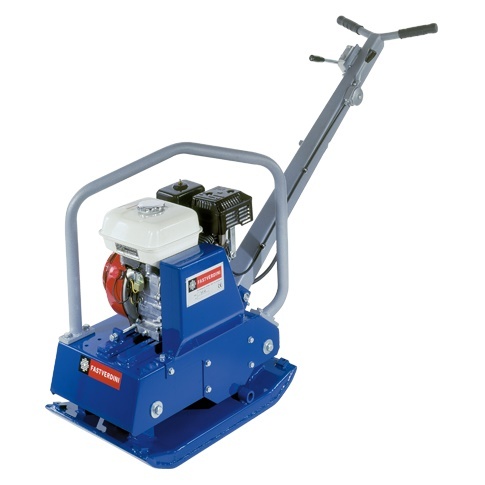

AR48 Series

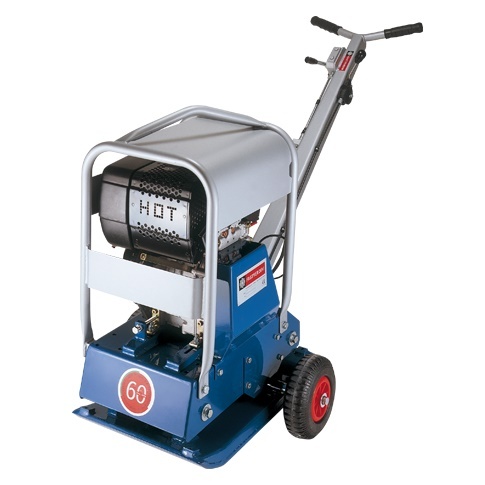

AR52 Series

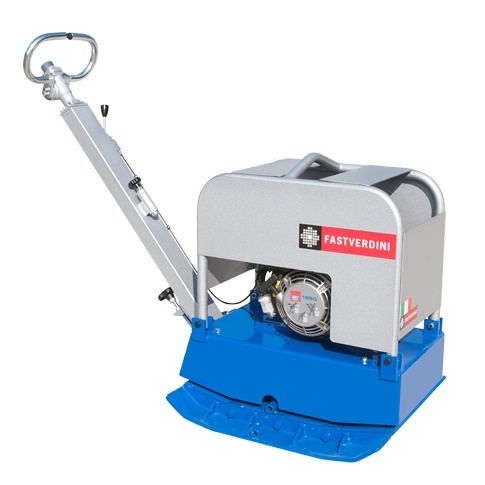

AR63 Series

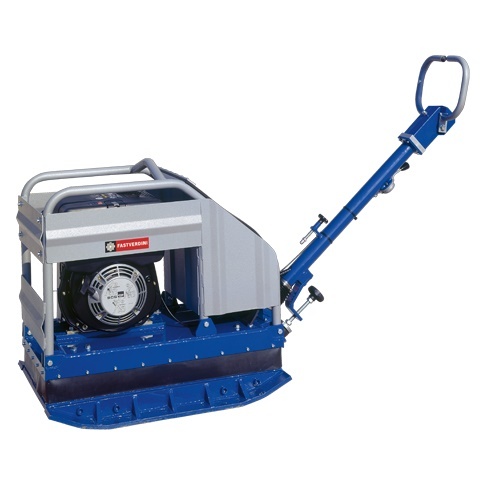

AR80 Series
Series | AR48 | AR52 | |
Model | AR48 - Honda | AR52 - Yanmar | AR52 - Hatz |
Model code | PCOHAR48 | PCOYAR51 | PCOHAR53 |
Operating weight * with extended plate (kg) | 100 / 110* | 130 / 140* | |
Working width * with extended plate (mm) | 400 / 560* | ||
Working length (mm) | 600 | ||
Centrifugal force (kN) | 25 | ||
Frequency Hz) | 80 | ||
Working speed (m/min) | 20 | ||
Max. penetration (cm-inch) | 30-11.8 | ||
Transport wheels | Are delivered | ||
Engine | Honda petrol GX200 | Yanmar diesel L48N | Hatz diesel 1B20 |
Engine power kW (hp) | 4.8 (6.5) | 3.5 (4.8) | 3.4 (4.6) |
Start | Manual | Manual | Manual |
Tank capacity (L) | 3,6 | 2,4 | 3.0 |
Series | AR63 | |||||
Model | AR63 - Honda | AR63 - Yanmar | AR63 - Yanmar | AR63 - Hatz | AR63 - Lombardini | AR63 - Lombardini |
Model code | PCOARH30 | PCOARY10 | PCOARY20 | PCOARH00 | PCOARL10 | PCOARL20 |
Operating weight * with extended plate (kg) | 233* / 213 | 238* / 218 | 246* / 226 | 247* / 227 | 248* / 228 | 252* / 232 |
Working width * with extended plate (mm) | 650* / 450 | |||||
Working length (mm) | 760 | |||||
Centrifugal force (kN) | 30 | |||||
Frequency Hz) | 80 | |||||
Working speed (m/min) | 20 | |||||
Max. penetration (cm-inch) | 50-19.7 | 50-19.7 | 55-21.6 | |||
Transport wheels | Are delivered | |||||
Engine | Honda petrol GX200 | Yanmar diesel L48N | Yanmar diesel L70N | Hatz diesel 1B20 | Lombardini diesel 15LD225 | Lombardini diesel 15LD350 |
Engine power kW (hp) | 4.8 (6.5) | 3.5 (4.8) | 4.9 (6.7) | 3.4 (4.6) | 3.5 (4.8) | 5.5 (7.5) |
Start | Manual | Manual | Manual | |||
Tank capacity (L) | 3.6 | 2.4 | 3.3 | 3,0 | 3,0 | 3,0 |
Series | AR80 | |||
Model | AR80 -Hatz | AR80 -Hatz | AR80 -Yanmar | AR80 -Yanmar |
Model code | PCOHAR80 | PCOHAV80 | PCOYAR80 | PCOYAV80 |
| Operating weight * with extended plate (kg) | 370 | 400 | 375 | 400 |
| Working width * with extended plate (mm) | 630 | |||
Working length (mm) | 900 | |||
Centrifugal force (kN) | 40 | |||
Frequency Hz) | 80 | |||
Working speed (m/min) | 20 | |||
Max. penetration (cm-inch) | 70-27.6 | |||
Transport wheels | Not supplied | |||
Engine | Hatz diesel 1B40 | Hatz diesel 1B40 | Yanmar diesel L100N | Yanmar diesel L100N |
Engine power kW (hp) | 7.3 (9.9) | 7.3 (9.9) | 7.4 (10.1) | 7.4 (10.1) |
Start | Manual | Electric | Manual | Electric |
Tank capacity (L) | 3,0 | |||
