Small-scale mechanization and storage equipment
Single grinders

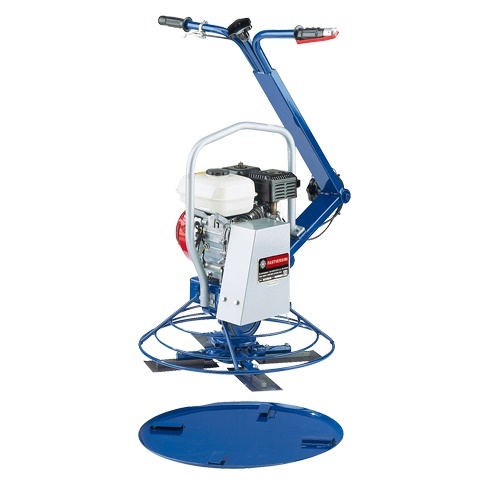

L60 Series
Motor protection and lifting hook, folding handle with adjustable height, mechanical knife tilt adjustment.
L60 Series
Model | LEVEL 60 - Honda | LEVEL 60 - Robin Subaru | LEVEL 60/E - Electric |
Model code | PFLL060S | PFLL060R | PFLL60EA |
Rotor diameter (mm) | 600 | ||
Number of blades | 4 | ||
Finishing Blades (mm) | 220х100 | ||
Grinding diameter disc (mm) | 640 | ||
Rotation speed (r/min) | 131 | 102 | |
Engine | Honda gas GX160 | Subaru gas EX16 | Single phase Electrical engine 230V - 50Hz |
Engine power (kV (hp)) | 4.0 (5.5) | 3.3 (4.5) | 1.5 (2) |
Start | Manual | Electric | |
Fuel consumption (l/h) | 1.4 | 1.2 | -- |
Tank capacity (L) | 3,6 | 3,5 | -- |
Dimensions Length x Width x Height (mm) | 1.300 x 636 x 850 | 1.300 x 636 x 850 | 1.300 x 636 x 850 |
Weight, (kg) | 56 | 64 | |

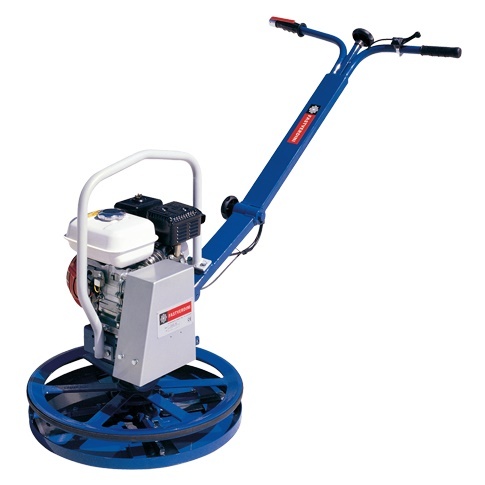

L63 series for wall polishing
Rotating protective bezel for accurate wall passage.
Motor protection and lifting hook. Foldable handle with adjustable height.
Mechanical tilt adjustment of the knife.
L63 series
for wall polishing
for wall polishing
Model | LEVEL 63 - Honda | LEVEL 63/E - Electric |
Model code | PFLL063S | PFLL063E |
Rotor diameter (mm) | 610 | |
Number of blades | 4 | |
Finishing Blades (mm) | 220х100 | |
Grinding diameter disc (mm) | 610 | |
Rotation speed (r/min) | 131 | 102 |
Engine | Honda gas GX160 | Single phase Electrical engine 230V - 50Hz |
Engine power (kV (hp)) | 4.0 (5.5) | 1.5 (2) |
Start | Manual | Electric |
Fuel consumption (l/h) | 1.4 | -- |
Tank capacity (L) | 3,6 | -- |
Dimensions Length x Width x Height (mm) | 1,300 x 670 x 850 | 1.300 x 670 x 850 |
Weight, (kg) | 50 | 58 |

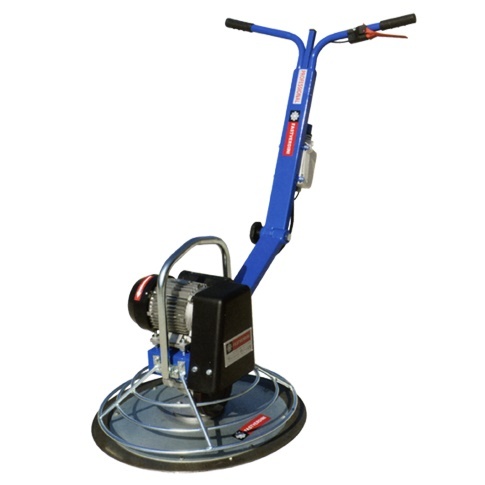

L70 Series
Sand and cement grinder with high thickness hard steel disk.
L70 Series
Model | LEVEL 70/S - Honda |
Model code | PFLLS070 |
Rotor diameter (mm) | 700 |
Rotation speed (r/min) | 131 |
Engine | Honda gas GX160 |
Engine power (kV (hp)) | 4.0 (5.5) |
Start | Manual |
Fuel consumption (l/h) | 1.4 |
Tank capacity (L) | 3,6 |
Dimensions: Length x Width x Height (mm) | 1.300 x700 x 850 |
Weight, (kg) | 60 |

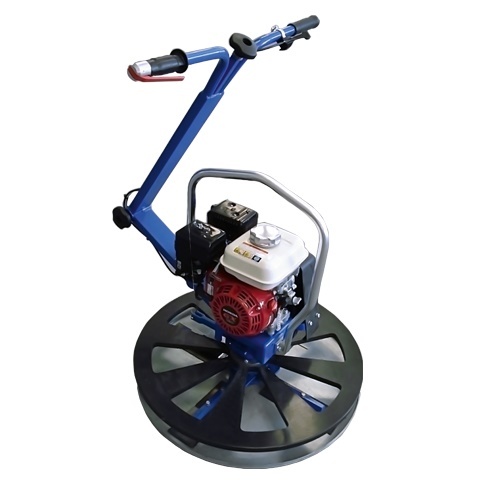

L75 series for wall grinding
Rotating protective bezel for accurate wall passage.
Motor protection and lifting hook. Foldable handle with adjustable height.
Mechanical tilt adjustment of the knife.
L75 series
for wall grinding
for wall grinding
Model | LEVEL 75- Honda |
Model code | PFLL075S |
Rotor diameter (mm) | 720 |
Number of blades | 4 |
Finishing Blades (mm) | 274х100 |
Grinding diameter disc (mm) | 765 |
Rotation speed (r/min) | 131 |
Engine | Honda gas GX160 |
Engine power (kV (hp)) | 4.0 (5.5) |
Start | Manual |
Fuel consumption (l/h) | 1.4 |
Tank capacity (L) | 3,6 |
Dimensions: Length x Width x Height (mm) | 1.300 x770 x 850 |
Weight, (kg) | 65 |

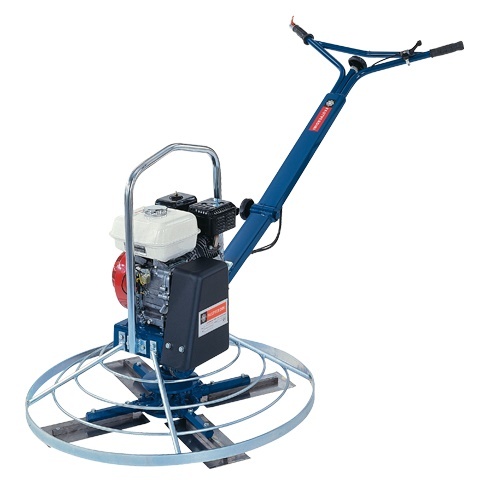

L100 Series
Rotating protective bezel for accurate wall passage.
Motor protection and lifting hook. Foldable handle with adjustable height.
Mechanical tilt adjustment of the knife.
L100 Series
Model | LEVEL 100 - Honda | LEVEL 100 - Robin Subaru | LEVEL 100/L - Honda | LEVEL 100/D - Lombardini | LEVEL 100/E - Electric |
Model code | PFLL100S | PFLL100SR | PFLL100L | PFLL100D | PFLL100EA |
Rotor diameter (mm) | 900 | ||||
Number of blades | 4 | ||||
Finishing Blades (mm) | 320 x 130 | ||||
Grinding diameter disc (mm) | 940 | ||||
Rotation speed (r/min) | 131 | 51-103 | |||
Engine | Honda gas GX160 | Subaru gas EX17 | Honda gas GX270 | Lombardini diesel 15LD225 | Three speed three phase electric motor 400V - 50Hz |
Engine power (kV (hp)) | 4.0 (5.5) | 4.4 (6) | 6.6 (5.5) | 3.5 (4.8) | 1.8 (2.5) - 2.4 (3.3) |
Start | Manual | Electric | |||
Fuel consumption (l/h) | 1.4 | 1.5 | 2,4 | 1,18 | -- |
Tank capacity (L) | 3,6 | 3,6 | 5,3 | 3 | -- |
Dimensions: Length x Width x Height (mm) | 2,005 x 915 x 900 | ||||
Weight, (kg) | 70 | 64 | 80 | 75 | |

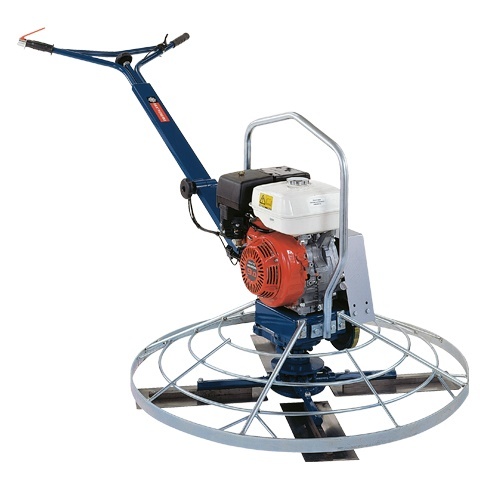

L108 Series
Rotating protective bezel for accurate wall passage.
Motor protection and lifting hook. Foldable handle with adjustable height.
Mechanical tilt adjustment of the knife.
L108 Series
Model | LEVEL 108/M - Honda | LEVEL 108/ME - Electric |
Model code | PFLL108EH | PFLL108ET |
Rotor diameter (mm) | 1120 | |
Number of blades | 4 | |
Finishing Blades (mm) | 428 x 160 | |
Rough Blades (mm) | 430 x 280 | |
Grinding diameter disc (mm) | 1120 | |
Rotation speed (r/min) | 125 | 49-100 |
Engine | Honda gas GX270 | Two speed three phase Electrical engine 230V - 50Hz |
Engine power (kV (hp)) | 6.6 (9) | 3.3 (4.6) - 4.6 (6) |
Start | Manual | Electric |
Fuel consumption (l/h) | 2.4 | -- |
Tank capacity (L) | 5,3 | -- |
Dimensions: Length x Width x Height (mm) | 2,160 x 1,150 x 950 | |
Weight, (kg) | 98 | 96 |

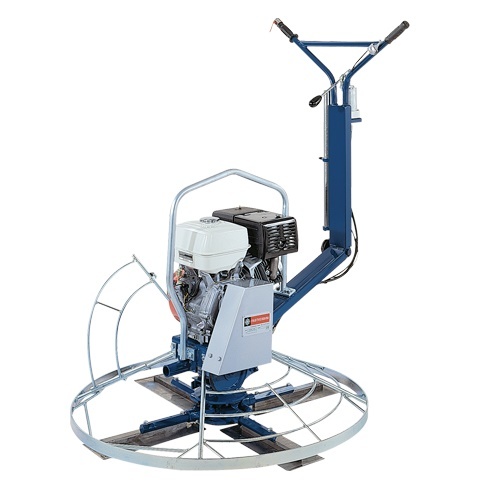

L110 Series
Motor protection and lifting hook, foldable height-adjustable handle, hydraulic blade tilt adjustment, centrifugal clutch, galvanized second handle for transportation.
L110 Series
Model | LEVEL 110/SL - Honda | LEVEL 110/SL - Honda | LEVEL 110/SLD - Lombardini | LEVEL 110/SLM - Honda | LEVEL 110/SLM - Honda | LEVEL 110/SLE - Electric |
Model code | PFLL110P | PFLL110S | PFLL110D | PFLL108T | PFLL108U | PFLL110EA |
Rotor diameter (mm) | 1200 | |||||
Number of blades | 4 | |||||
Finishing Blades (mm) | 452 x 155 | |||||
Rough Blades (mm) | 480 x 245 | |||||
Grinding diameter disc (mm) | 1200 | |||||
Rotation speed (r/min) | 125 | 49-100 | ||||
Engine | Honda gas GX270 | Honda gas GX340 | Lombardini diesel 15LD350 | Honda gas GX270 | Honda gas GX340 | Two speed three phase Electrical engine 400V - 50Hz |
Engine power (kV (hp)) | 6.6 (9) | 8.0 (11) | 5.5 (7.5) | 6.6 (9) | 8.0 (11) | 3.3 (4.6) - 4.6 (6) |
Start | Manual | Electric | ||||
Fuel consumption (l/h) | 2.4 | 3.1 | 1.76 | 2.4 | 3.1 | -- |
Tank capacity (L) | 5.3 | 6.1 | 4.3 | 5.3 | 6.1 | -- |
Dimensions: Length x Width x Height (mm) | 1220 x 1220 x 1300 | 1220 x 1220 x 1300 | ||||
Weight, (kg) | 120 | 122 | 120 | 119 | 121 | 125 |
SUPERFLY Series
Grinder for very fresh cement, aluminum frame, 3-meter handle, which can be disassembled into three parts.
SUPERFLY Series
Model | 900 mm SUPERFLY - Honda |
Model code | PFLLSF01 |
Rotor diameter (mm) | 900 |
Number of blades | 4 |
Finishing Blades (mm) | 320 x 130 |
Grinding diameter disc (mm) | 940 |
Rotation speed (r/min) | 65 |
Engine | Honda gas GX100 |
Engine power (kV (hp)) | 1.8 (3) |
Start | Manual |
Fuel consumption (l/h) | 0.88 |
Tank capacity (L) | 0.8 |
Dimensions: Length x Width x Height (mm) | 900 x 900 x 650 |
Weight, (kg) | 27 |
