Small-scale mechanization and storage equipment
Rotary hammers
Electric rotary hammers
Hammers for destruction
Heavy duty, low maintenance drills with single-phase power supply 230 V, 50 Hz.

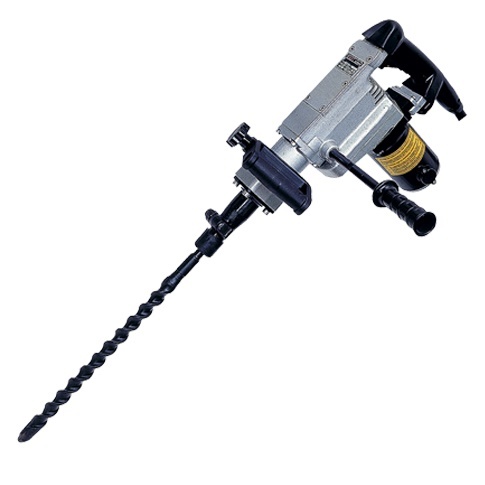

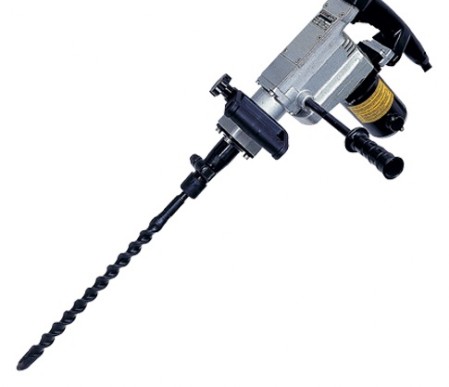

F45

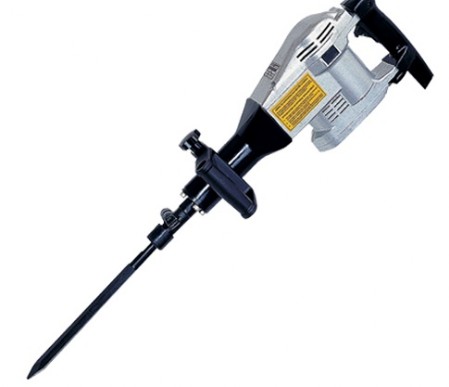

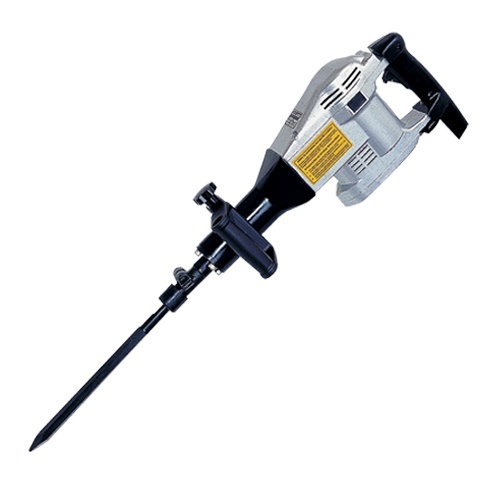

R52 and S56
Model | DEMOLIT/ PERFORATORE F45 | DEMOLITION HAMMER S56 HRA | DEMOLIT/ PERFORATORE R52 |
Model code | PFMRF45A | PFS56HRA | PFMRR52M |
Working weight (kg) | 10 | 12 | 13 |
| Number of beats per minute | 3590 | 1950 | 1900 |
| Rotation speed (rpm) | 342 | - | 370 |
| Engine power (watts) | 980 | 1000 | 1000 |
| Voltage (V) | 230 | 230 | 230 |
| KSM impact energy (J) | 2,04 (20,00) | 2,30 (22,50) | 2,24 (22,00) |
| Hex connection tool | Kango | Fastverdini | Kango |
Hydraulic rotary hammers
MR Series
Rotary hammer for professional use. It can be used vertically and horizontally. Shock-absorbing handle for maximum vibration reduction. Different types of chisels are available as options.

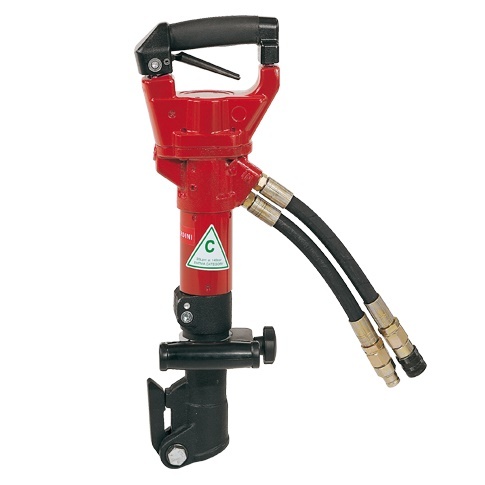

MR12 Series

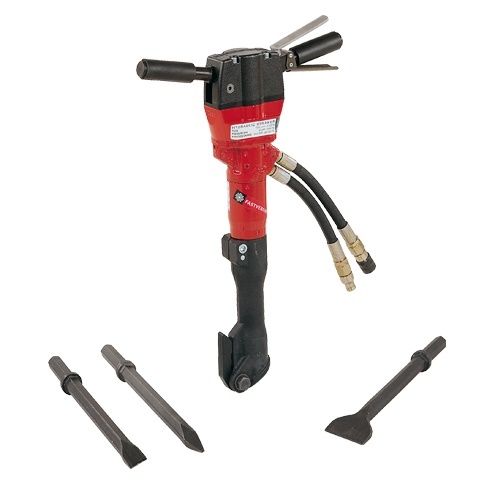

MR16 and MR20 Series
Model | MR12 - DEMOLITION HAMMER - 12 KG. | MR20 - DEMOLITION HAMMER - 20 KG. | MR16 - DEMOLITION HAMMER - 16 KG. |
Model code | PFMRDM12 | PFMRDM20 | PFMRDM16 |
Working weight (kg) | 12 | 20 | 16 |
Number of beats per minute | 1600 | ||
Min-max flow (l/min) | 15-30 | ||
Max. pressure (bar) | 150 | ||
KSM impact energy (J) | 5,5 (53,90) | 7,0 (68.60) | 5,5 (53,90) |
Hex connection tool | 22 x 82 | 25 х 108 | 22 x 82 |

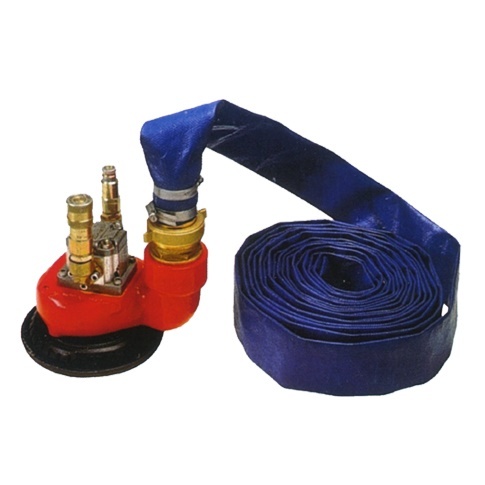

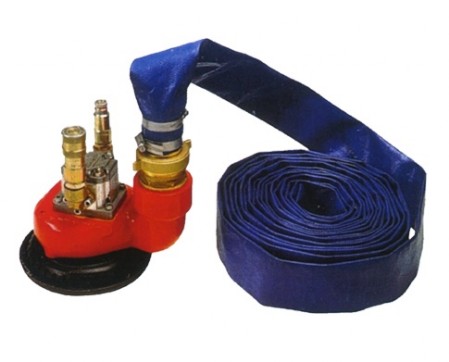

Hydraulic pump
Hydraulic submersible pump for pumping clean or dirty water.
Hydraulic pump
Model | PD22 - IMMERSION |
Model code | PISOM001 |
Working weight (kg) | 25 |
Max. head (m) | 16 |
Min. - max. flow rate (l/min) | 20-40 |
Max. pressure (bar) | 180 |
Hose coupling | Standard 4 |
Maximum size of solid particles for absorption (mm) | 75 |
The maximum concentration of sludge in water | 25% |
Hose length (m) | 10 |

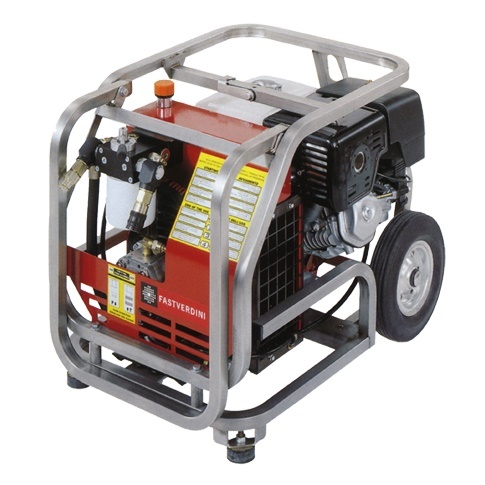

Hydraulic control units
The compact control units with stainless steel frame have integrated large diameter wheels for easy transport even over rough terrain. Auto acceleration. Oil cooler in a protected position. Quick couplings on swivel fittings.
Hydraulic control unit
| Model | FGH9 - Honda 9 Hp | FGH13 - Honda 13 Hp | FGH18B - Briggs&Stratton18Hp | FGH18 - Briggs&Stratton18Hp |
| Model code | PICSFGH9 | PICSFGH13 | PICSFG18B | PICSFGH18 |
| Engine | Honda gas GX270 | Honda gas GX390 | Briggs & Stratton two-cylinder gas engine | Briggs & Stratton two-cylinder gas engine |
Power (kV (hp)) | 6,62 (9,0) | 9,56 (13,0) | 13,24 (18,0) | 13,24 (18,0) |
| Start | Manual | Manual | Electric and manual | Electric and manual |
Flow rate (l/min) | 20 | 20 или 30 | 19+19 | 30 или 38 |
Max. pressure (bar) | 140 | 140 | 140 | (30 Lt.)175 (38 Lt.)140 |
Oil capacity tank (l) | 7 | 10 | 15 | 15 |
Pipe length (m) | 7 | 7 | 7 | 7 |
Weight without liquids (kg) | 58 | 75 | 110 | 95 |
Size (cm) | 45x65 H=57 | 60x85 H=63 | 60x89 H=65 | 60x89 H=65 |
