Small-scale mechanization and storage equipment
Rammers
Gas rammers
RAN B Series
The powerful and easy-to-use Fast Verdini rammers provide high performance and compaction strength.
Available options: transport trolley and lifting handle with drive roller.

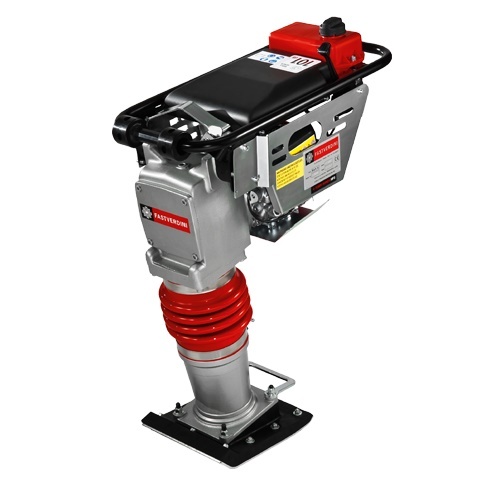

RAN6 Series

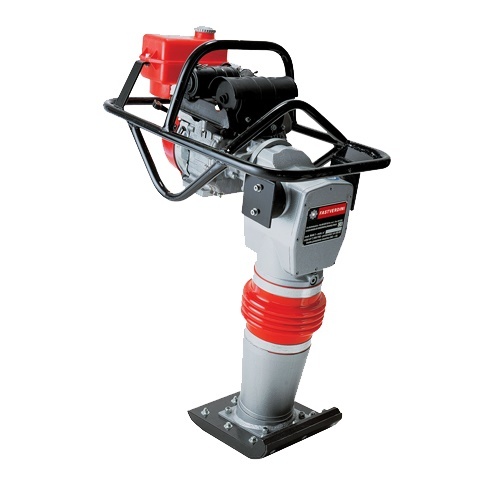

RAN7 Series
Series | RAN 7 B | RAN 6 B | ||
Model | RAN 7 - Honda | RAN 7 - Robin Subaru | RAN 6 - Honda | RAN 6 - Robin Subaru |
Model code | PFCRAN7H | PFCRAN7R | PFCRAN60 | PFCRAN6R |
Working weight (kg) | 80 | 86 | 73 | 80 |
Engine | Honda GXR120 | Robin Subaru EH12 | Honda GXR120 | Robin Subaru EH12 |
Engine power kW (hp) | 2,94 (4,0) | 2,94 (4,0) | ||
Frame width (cm) | 28 | 28 | ||
Frame length (cm) | 32 | 32 | ||
Impact Height (mm) | 72 | 54 | ||
Number of beats per minute | 700 | 700 | ||
Compaction force (kN) | 16,6 | 16 | ||
Sealing depth (mm) | 650 | 650 | ||
Advance speed (m/min) | 13 | 12 | ||
Diesel rammers
RAN D Series
Powerful rammers, balanced and easy to handle, provide high performance and compaction strength.
Available options: transport trolley and lifting handle with drive roller.

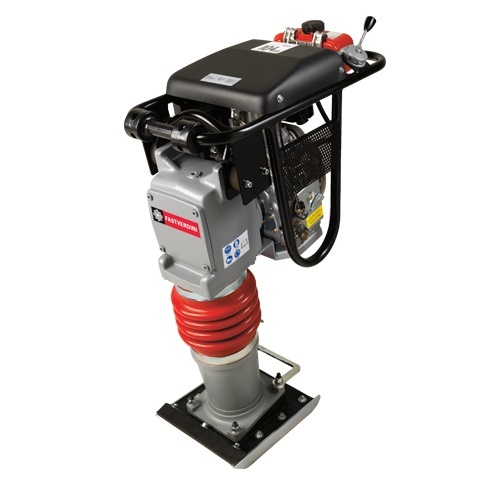

RAN6 Series

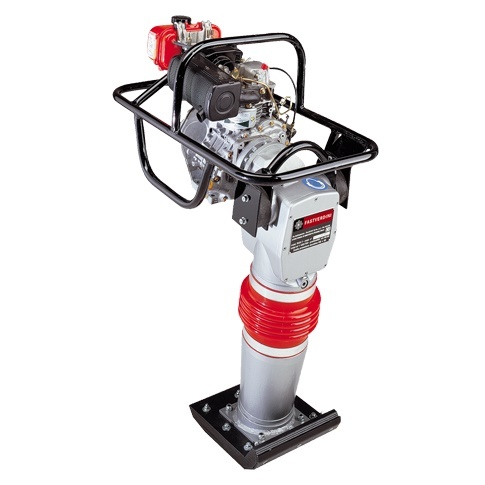

RAN7 Series
Model | RAN 6 - Yanmar | RAN 7 - Yanmar |
Model code | PFCRAN6D | PFCRAN7D |
Working weight (kg) | 90 | 98 |
Engine | Yanmar L48N | Yanmar L48N |
Engine power kW (hp) | 2,94 (4,0) | 2,94 (4,0) |
Frame width (cm) | 28 | 28 |
Frame length (cm) | 32 | 32 |
Impact Height (mm) | 54 | 72 |
Number of beats per minute | 670 | 670 |
Compaction force (kN) | 16,5 | 17,2 |
Sealing depth (mm) | 680 | 680 |
Advance speed (m/min) | 12 | 13 |
