Small-scale mechanization and storage equipment
Pneumatic vibrators
AP Series

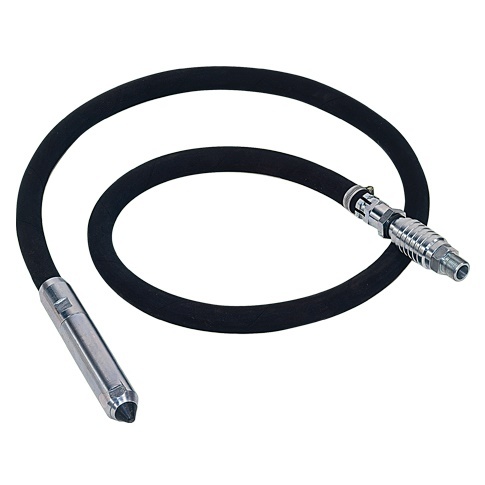

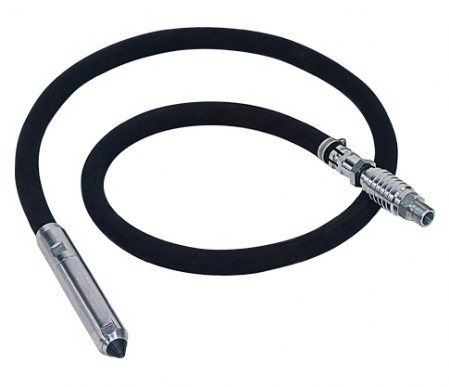

Pneumatic immersion vibrators for concrete driven by a compressor.
AP Series
Model | AP38 | AP52 | AP60 | AP78 |
Model code | PFVPAP38 | PFVPAP52 | PFVPAP68 | PFVPAP80 |
Diameter of vibro-tip (mm) | 40 | 50 | 60 | 80 |
Vibro-tip length (mm) | 230 | 250 | 280 | 330 |
Flexible length (m) | 2 | |||
Vibration (rpm) | 23000 | 20000 | 18000 | 16000 |
Air flow (l/min) | 500 | 700 | 900 | 1300 |
Max. Pressure (Bar) | 6 | |||
Connection type | Threaded | |||
Working weight (kg) | 3.6 | 6 | 7.5 | 13.5 |
