High frequency vibrators
T and S Series introduce submersible high frequency concrete vibrators.

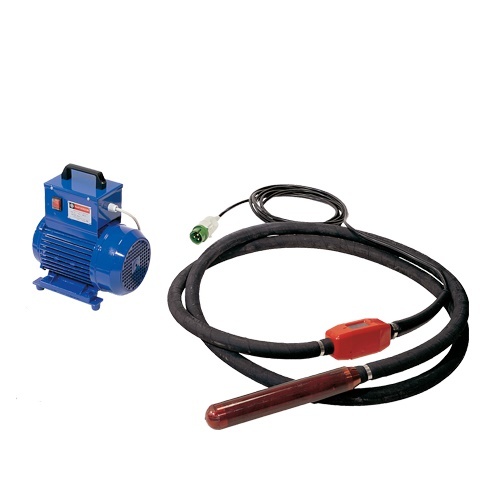

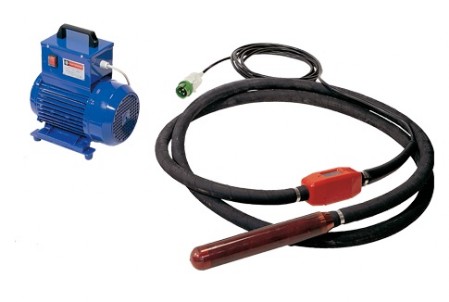

T Series
T Series
Model | T27X | T40X | T55X | T75X | T27CX | T40CX |
Model code | PFVIT27X | PFVIT40X | PFVIT55X | PFVIT75X | PFVIT27CX | PFVIT40CX |
Diameter of vibro-tip (mm) | 38 | 52 | 65 | 85 | 38 | 52 |
Vibrator tip length (mm) | 315 | 395 | 420 | 470 | 315 | 395 |
Voltage (V) | 42 | |||||
Current frequency (Hz) | 200 | |||||
Flexible shaft length (m) | 5 | 4 | ||||
Electric cable (m) | 5+5 | 4+5 | ||||
Vibration (rpm) | 12000 | |||||
Working weight (kg) | 6 | 10 | 16 | 27 | 5.6 | 9.6 |

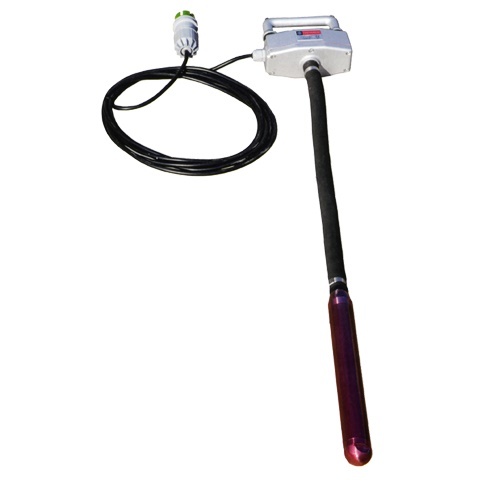

S Series
S Series
Model | S27 | S40 |
Model code | PFVS4027 | PFVS4040 |
Diameter of vibro-tip (mm) | 38 | 52 |
Vibrator tip length (mm) | 315 | 395 |
Voltage (V) | 42 | |
Current frequency (Hz) | 200 | |
Flexible shaft length (m) | 0.6 | |
Electric cable (m) | 0.6+5 | |
Vibration (rpm) | 12000 | |
Working weight (kg) | 5 | 7.5 |

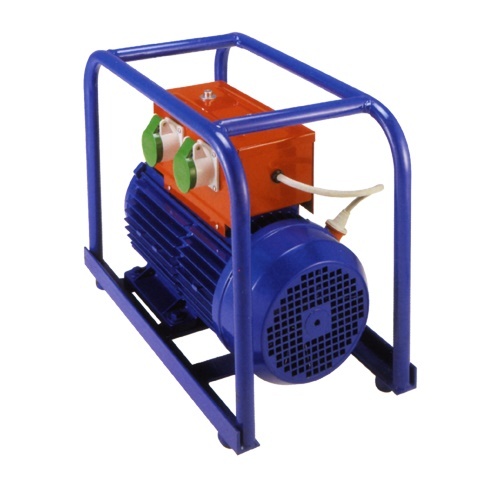

Converters
Single and three phase converters for high frequency vibrators.
Converters
Model | R112 - Three phase | R113 - Three phase | RMZ - Single phase | RM106 - Single phase | RM103 - Single phase | RM102 - Single phase |
Model code | 5CT30S10 | 5CT45S10 | 5CM10RMZ | 5CM10S10 | 5CM15S10 | 5CM18S10 |
Power, kWt) | 3.0 | 4.5 | 0.9 | 1.0 | 1.2 | 2.0 |
Input voltage (V) and frequency (Hz) | 400-50 | 230-50 | 230-50 | |||
Output voltage (V) and frequency (Hz) | 42-200 | |||||
Number of outputs | 2 | 1 | 2 | |||
Protective frame | yes | no | upon request | yes | ||
Working weight (kg) | 35 | 42 | 17 | 18 | 19 | 32 |

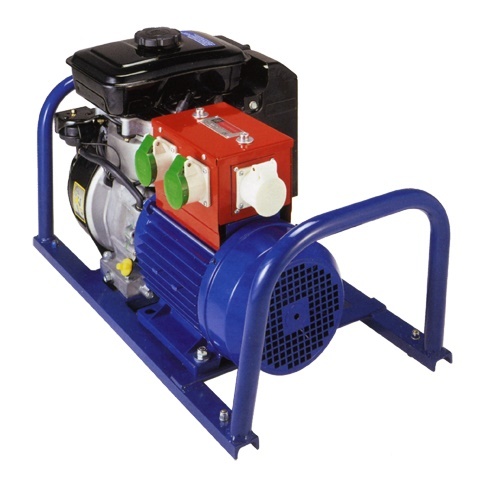

Generators for vibrators
Generators for vibrators
Model | 90G - Briggs & Stratton | 110G - Honda | 115G - Lombardini |
Model code | PFGEG096 | PFGEG100 | PFGEG116 |
Power, kWt) | 1.25 (1.0) | 2.5 (2.0) | 3.75 (3.0) |
Engine | B & S gas 550 | Honda gas GX160 | Lombardini diesel 15LD350 |
Engine power, kW (h.p.) | 2.6 (3.5) | 4.05 (5.5) | 5.5 (7.5) |
Revolutions per minute | 3600 | ||
Start | Manual | ||
Output voltage (V) and frequency (Hz) | 42-200 | ||
Number of outputs | 16 | 30 | 45 |
Protective frame | Есть | ||
Working weight (kg) | 31 | 52 | 70 |
