Small-scale mechanization and storage equipment
Double grinders

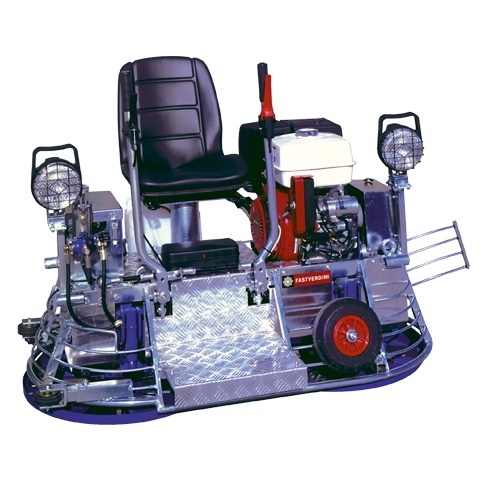

Mechanical grinders BABY
Mechanical control and hydraulically adjustable blade angle with simultaneous tilt of both rotors. Two working lights. Protective frame that can be opened on both sides. All parts are galvanized. 10 l water tank with push-button pump and continuous flow sprayers. Special galvanized steel battery. Wheels and handles for transportation.
Mechanical grinders BABY
Model | BABY DUPLEX 630 – Honda without overlap | BABY DUPLEX 630 – Honda without overlap |
Model code | PFDUPL65 | PFDUPM65 |
Rotor diameter (mm) | 610 | |
Number of blades | 8 | |
Finishing Blades (mm) | 220 х 100 | |
Grinding Disc Diameter (mm) | 640 | |
Rotation speed (r / min) | 106 | 49-100 |
Engine | Honda gas GX390 | Honda gas GX390 |
Engine power (kV (hp)) | 9.6 (13) | 9.6 (13) |
Start | Electric | Manual |
Fuel consumption (l / h) | 3,5 | |
Tank capacity (L) | 6,1 | |
Dimensions Length x Width x Height (mm) | 1380 х 680 х 1020 | |
Weight, (kg) | 210 | |

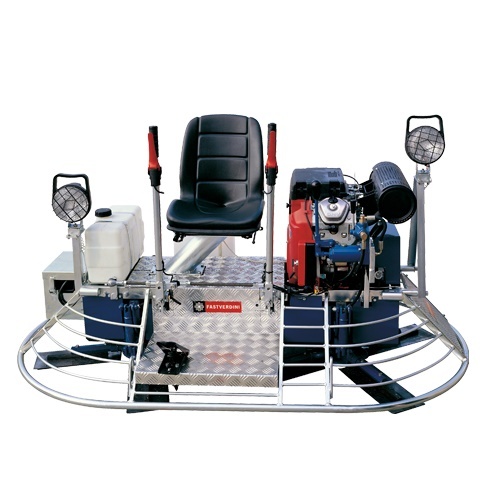

Mechanical grinding machines
Mechanical control and hydraulically adjustable blade angle with simultaneous tilt of both rotors. Two working lights. Protective frame that can be opened on both sides. All parts are galvanized. 10 L water tank with push-button pump and continuous flow sprayers. Battery housing made of special galvanized steel. Anti-corrosive fuel tank with a volume of 11 l, made of special material.
Mechanical grinding machines
Model | DUPLEX 950 – Honda with overlap | DUPLEX 1000 – Honda without overlap | DUPLEX 1000 – Honda without overlap | DUPLEX 1200 - Honda | DUPLEX 1250 - Briggs & Stratton |
Model code | PFDUPL95 | PFDUPL00 | PFDUPL01 | PFDUPL02 | PFDUPL03 |
Rotor diameter (mm) | 950 | 1000 | 1000 | 1200 | 1200 |
Number of blades | 8 | ||||
Finishing Blades (mm) | 357х152 | 452х155 | |||
Rough Blades (mm) | 360х250 | 480х245 | |||
Grinding Disc Diameter (mm) | -- | 1000 | -- | 1200 | |
Rotation speed (r / min) | 134 | ||||
Engine | Honda gas GX630 | Honda gas GX630 | Honda gas GX690 | Honda gas GX690 | Briggs & Stratton gas |
Engine power (kV (hp)) | 16.2 (22) | 16.2 (22) | 16.5 (22.5) | 16.5 (22.5) | 25.7 (35) |
Start | Electric | ||||
Fuel consumption (l / h) | 6 | 6,3 | 8 | ||
Tank capacity (L) | 11 | ||||
Dimensions Length x Width x Height (mm) | 1830 x 1040 x 980 | 2210 x 1040 x 980 | 2320 x 1240 x 980 | 2600 x 1240 x 980 | |
Weight, (kg) | 270 | 326 | 370 | ||

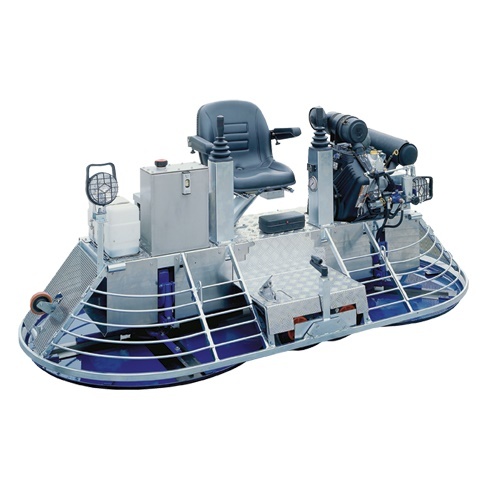

Hydraulic grinding machines
Hydraulic control with two joysticks. Hydraulically adjustable blade angle with simultaneous tilt of both rotors. Two working lights. Protective frame that can be opened on both sides. All parts are galvanized. 10 liter water tank with push-button electronic pump and continuous flow sprayers. Battery housing made of special galvanized steel. Anticorrosive fuel tank for 11 liters. Stainless steel oil tank.
Hydraulic grinding machines
Model | DUPLEX 1000/H - Honda | DUPLEX 1250/H - Briggs & Stratton | DUPLEX 1200/H - Honda |
Model code | PFDUPLH1 | PFDUPLH3 | PFDUPLH2 |
Rotor diameter (mm) | 1000 | 1200 | 1200 |
Number of blades | 8 | ||
Finishing Blades (mm) | 357х152 | 452 x 155 | 452 x 155 |
Rough Blades (mm) | 360х250 | 480 x 245 | 480 x 245 |
Grinding Disc Diameter (mm) | 1000 | 1200 | 1200 |
Rotation speed (r / min) | 134 | 95 | 134 |
Engine | Honda gas GX690 | Briggs & Stratton gas | Honda gas GX690 |
Engine power (kV (hp)) | 16.5 (22.5) | 25.7 (35) | 16.5 (22.5) |
Start | Manual | Manual | Manual |
Fuel consumption (l / h) | 6,3 | 8 | 6,3 |
Tank capacity (L) | 11 | ||
Dimensions Length x Width x Height (mm) | 2210 x 1040 x 980 | 2600 x 1240 x 980 | 2320 x 1240 x 980 |
Weight, (kg) | 270 | 370 | 326 |
